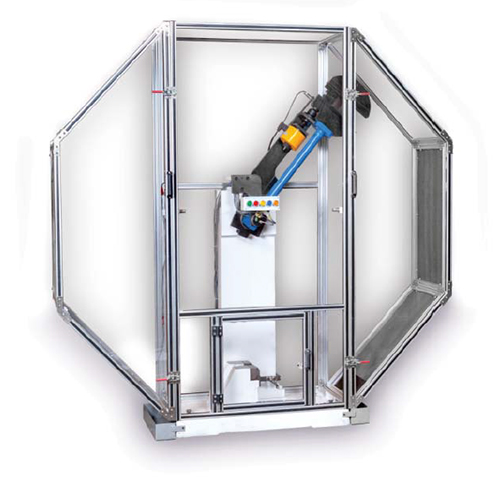

Motorised ASTM/ISO Pendulum Impact Testing Machine

FEATURES

• ASTM Pendulum Impact Testing Machine strictly confirm to ASTM-E-23-2007 specifications.
• ISO Pendulum Impact Testing Machine strictly confirm to BSEN-ISO:148-2-2008 specifications.
• These machine are suitable for Charpy test only on various materials.
• Basically the design of both the machines are same except the striker radius. We can also supply combined model i.e. ASTM & ISO with an extra striker (optional)
• Motorized Ipact Testing machine are widely recognized as the most accurate with super & sturdy design, with testing accuracy and repeatability.
• The complete operation of the machine is automatic.
• The entire machine is encased in an attractive enclosure, with aluminium frame work & bullet proof procarbonate covers in order to prevent accident during test.
• Impact Energy absorbed by specimen after test, can be indicated on various version like Analogue or Digital or Analogue cum Digital, depending upon the models selected.
• Easy machine operation by push button, easy fixing of samples, easy closing & opening of doors.
• Safety interlocks are provided for the door.
• The high stressed and wearing parts like support block and strikers are of special alloy steels duly heat treated.
• Various capacities like 300 Joules, 400 Joules & 450 Joules are available.
• Special software for digital version can be given (optional)
• NIST & ISO Standard sample sets, Gauges, Tongs, Sub-Zero bath, Templates, V Notch milling cutters are available (optional).
