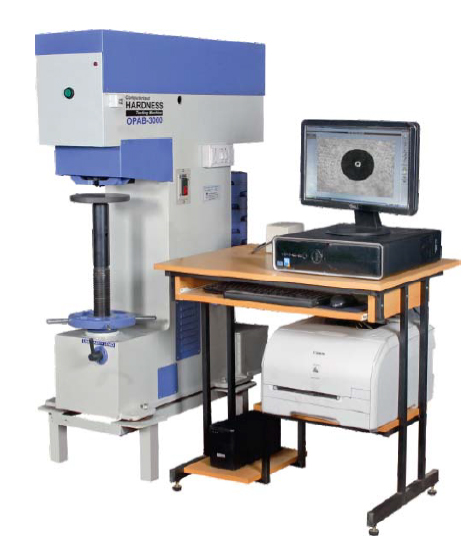

Computerised Optical Brinell Hardness Testing Machine


FEATURES


  • Automatic Brinell Hardness Testing machine is design for Brinell hardness measurement on steel & other ferrous materials & also on non-ferrous materials.
  • Operation of the machine is by push buttons. Operation cycle is fully automatic with adjustable load holding time.
  • This machine is a modified version of AKB-3000 & OPAB-3000, Which is provided with an inbuilt optical system (CCD) of 16X.
  • An Automatic indenter index system is provided which tilts the indenter after the impression and on removal of load. The optics will transfer the image of indentation to CCD. The image is further digitalized & processed by PC for measurement. The diameter of the image can be measured automatically/manually to give Brinell hardness value.
  • Thus this machine gives fast and accurate results with less operator fatigue.
  • This model is mainly useful for production testinh in Auto Shops, Foundries, Forge shop and heat treatment units, etc. Its stability and unique design of a floating fulcrum lever system ensure high accuracy & dependability.
  • Test loads from 500 to 3000 kgf in steps of 250 kgf.
  • Machine Test height x Throat is 365x200 mm.
  • Fully computerized system for indentation measurement and display.
  • Windows based software system.
  • Accurate measurement of Brinell hardness through matched optics, CCD camera, Hardware & software using advanced image processing technology.
  • Teo modes of measurement - Manual & auto.
  • In Auto mode of the image is scanned for measurement & hardness is display automatically.
  • Verification facility is provided for clear indication of measured impression by encircling the same.
  • Windowing facility is provided which encircles the blurt images for better accuracies.
  • Macro & Micro adjustment facilities are provided in manual mode for fast & accurate encircling of the image to be measured.
  • Batch testing facility is provided.
  • Statistical Analysis report can be generated.
  • Calibration mode is provided with password protection.
  • Special test fixtures for odd job /production testing can be supplied (optional)
  • Accuracy conform to IS:2281-2005 & BS:240.
