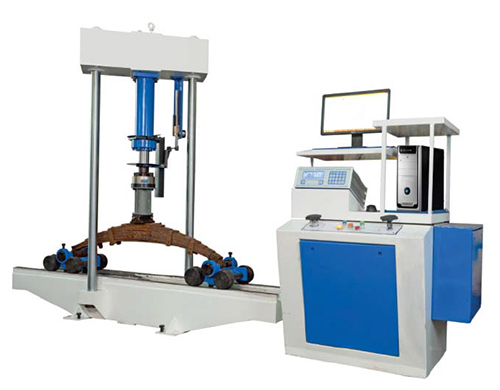

Computerized Leaf Spring Testing Machine

FEATURES

• The machine is used to test wide range of Leaf / Laminated Springs used for various types pf vehicles, for load rate as per IS:1135-1995.
• Large size table of 330x2350 mm long, for wide range of springs.
• Load measurement by Load Cell
• Load Application by double acting hydraulic cylinder
• Standard load measurement with 20,000 counts. Finer optional at extra cost can also be supplied.
• Clearance for compressiontest is 650 mm (max).
• Distance between trolleys adjustable range from 400 mm to 2000 mm
• Ram Stroke of 400 mm.
• Displacement measurement by Rotary Encoder & Resolution is 0.01 mm
• Wire mesh safety guard for 4-side or loading unit, covering the sample testing area for safety purpose.
• Over load & Over travel safety provisions.
• Load stabilizer or Servo Control (optional) is an extra attachment used to maintain a desired load constant at specific deflection enabling measuring it easily & accurately.
• We can also supply machines for Helical compression springs & Disc springs.
• Various Models - Capacities from 100 kN to 500kN are available.
• Loading accuracy well within ±1%, conform to IS: 1825/ BS : 1610 standards, from 2% to 100% of machine capacity.
